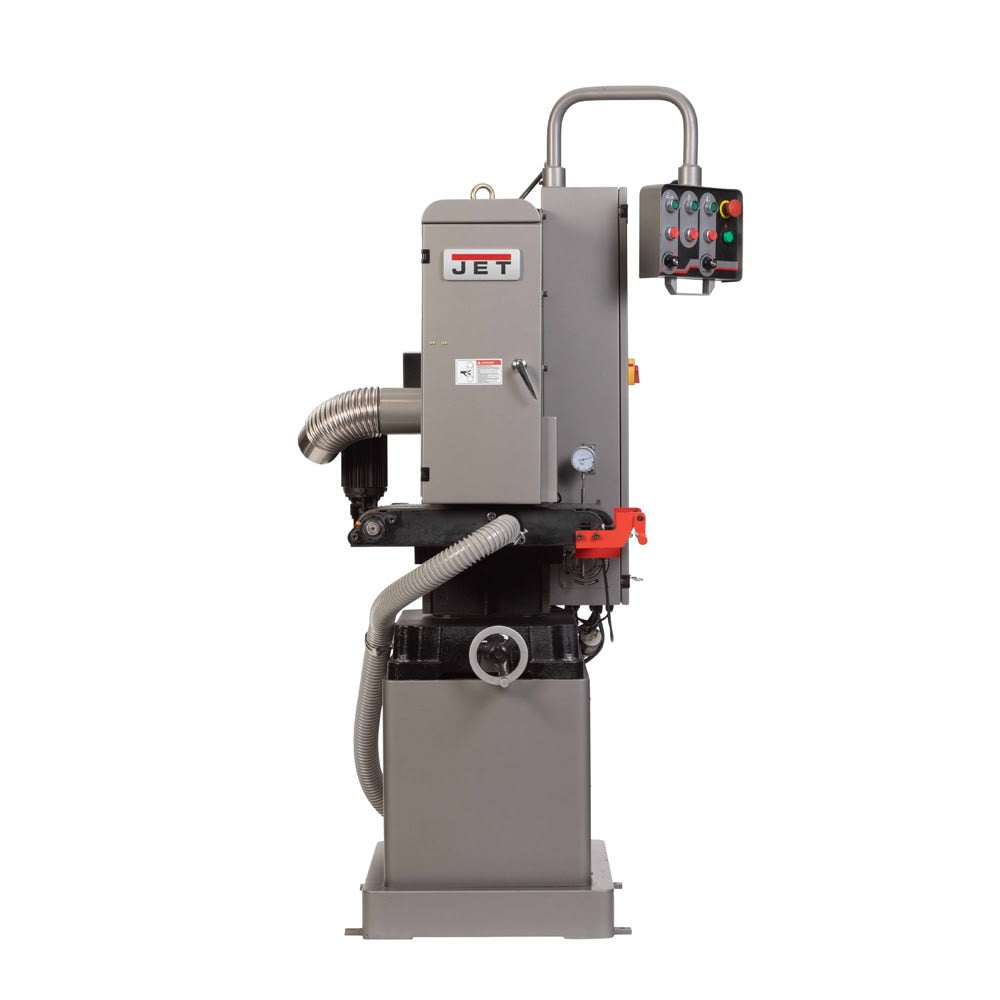

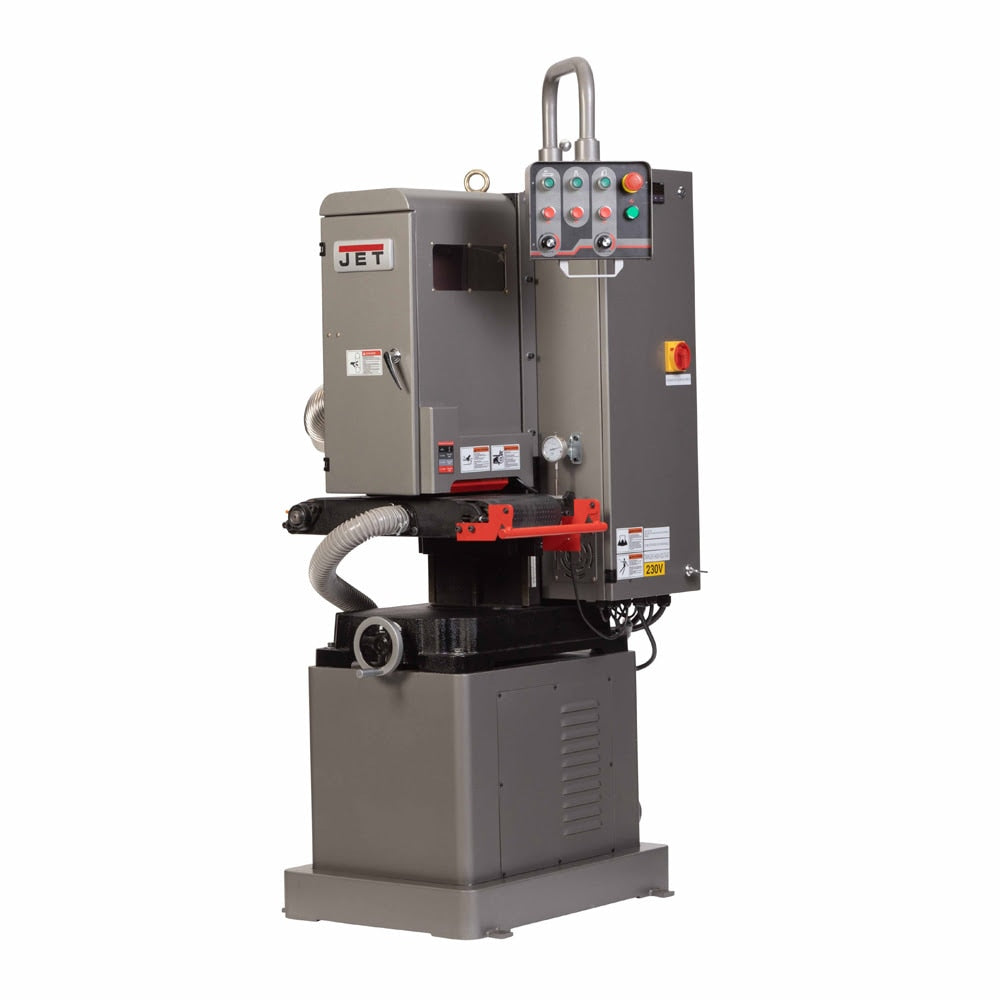

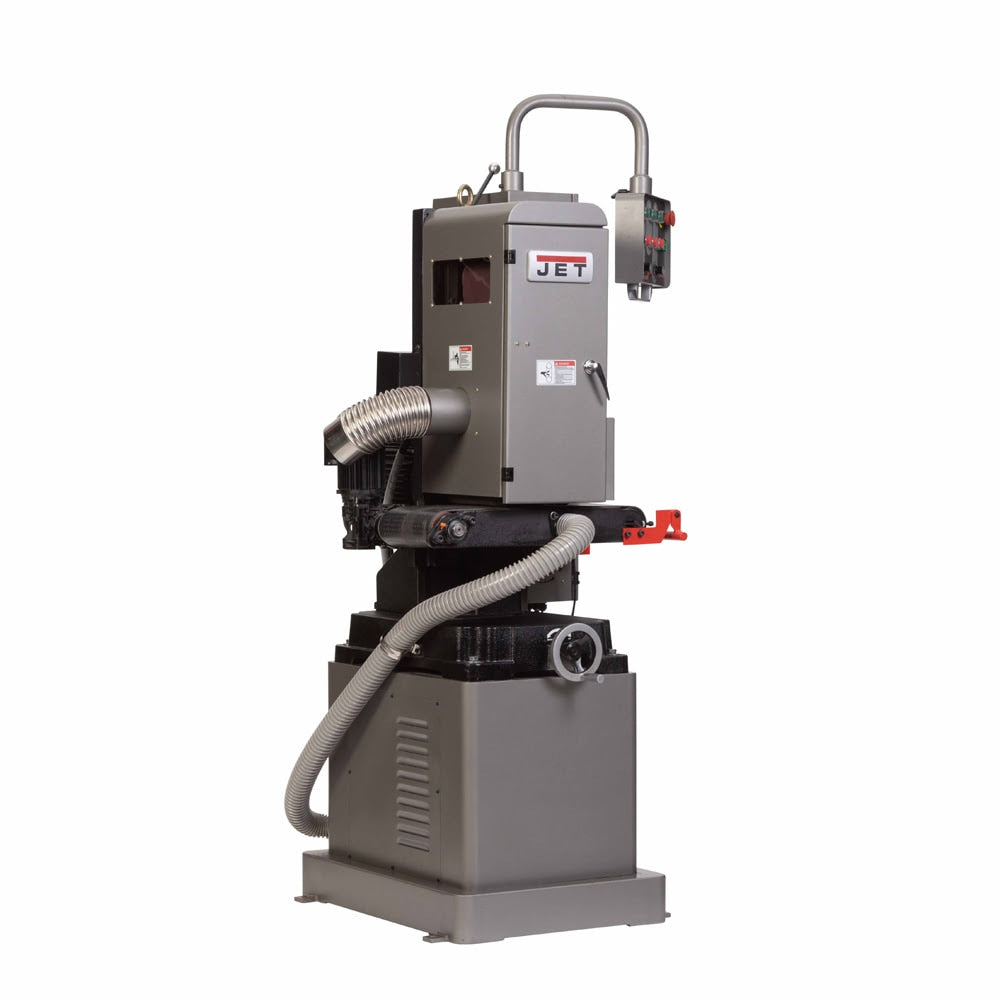

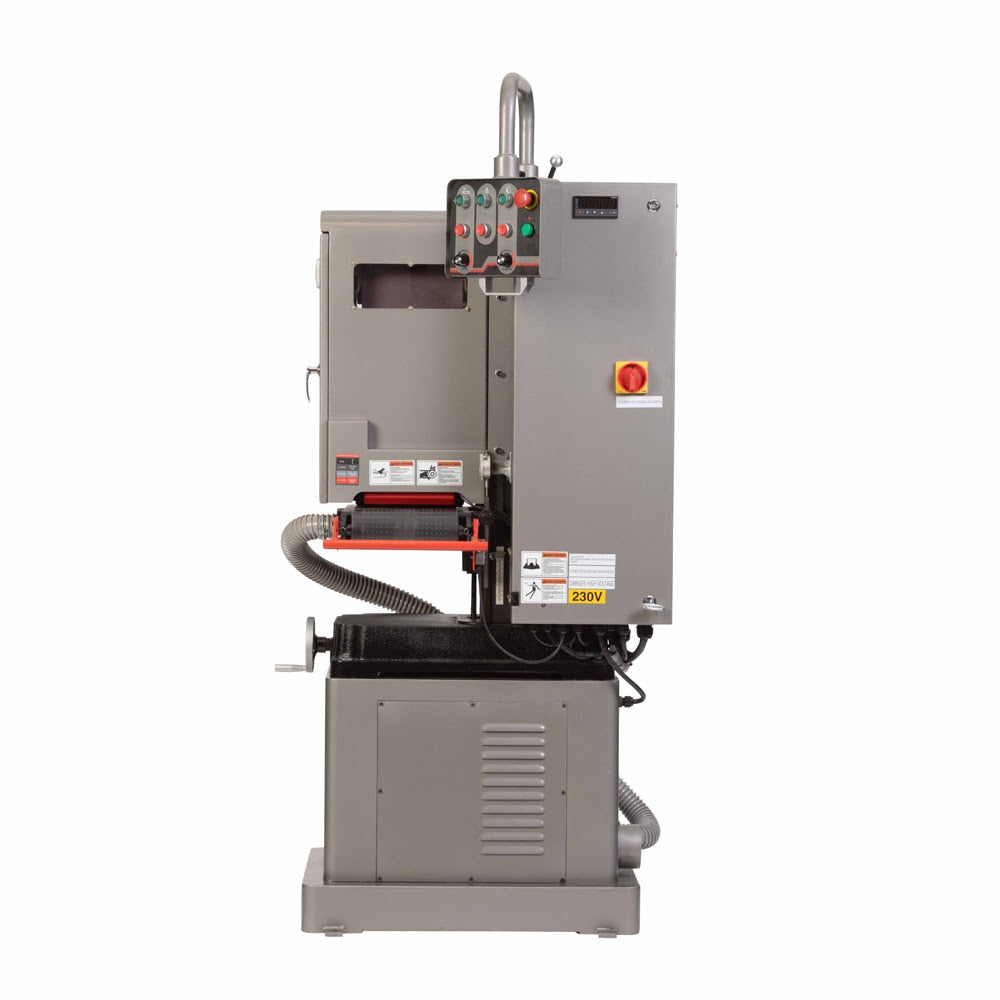

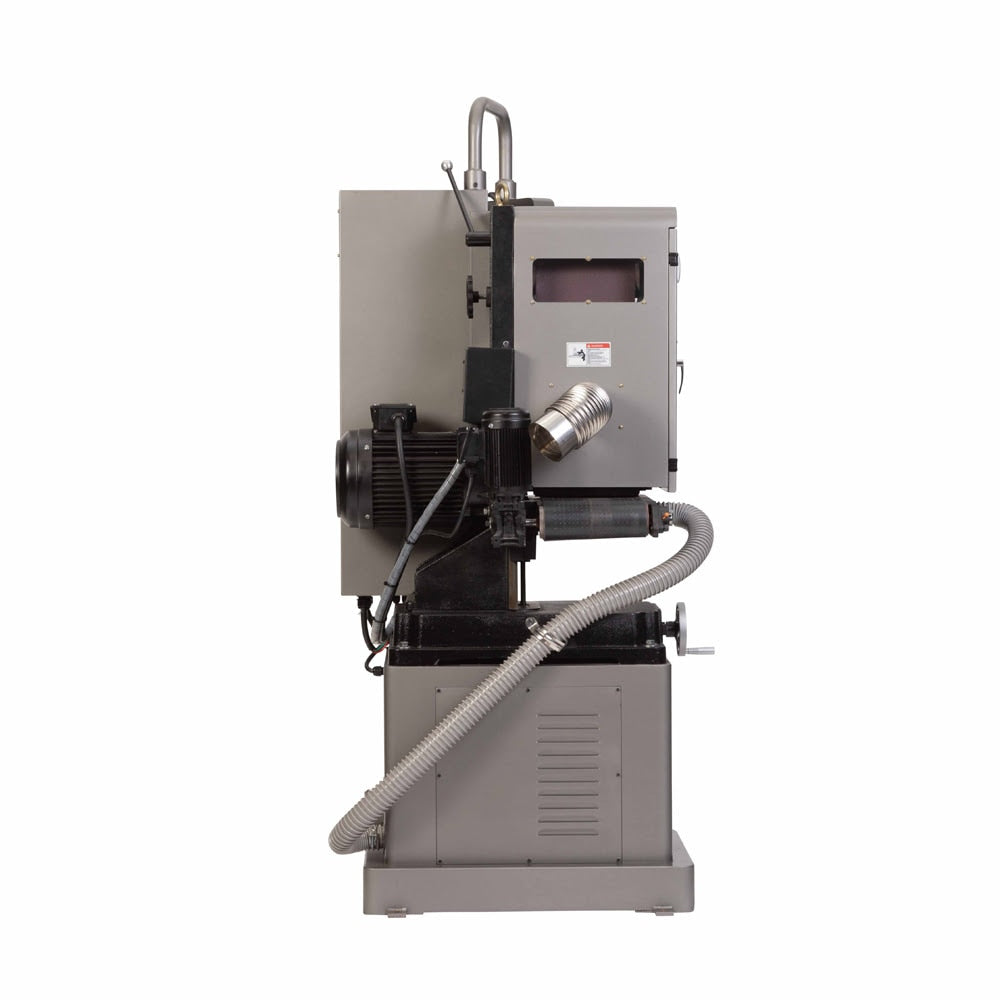

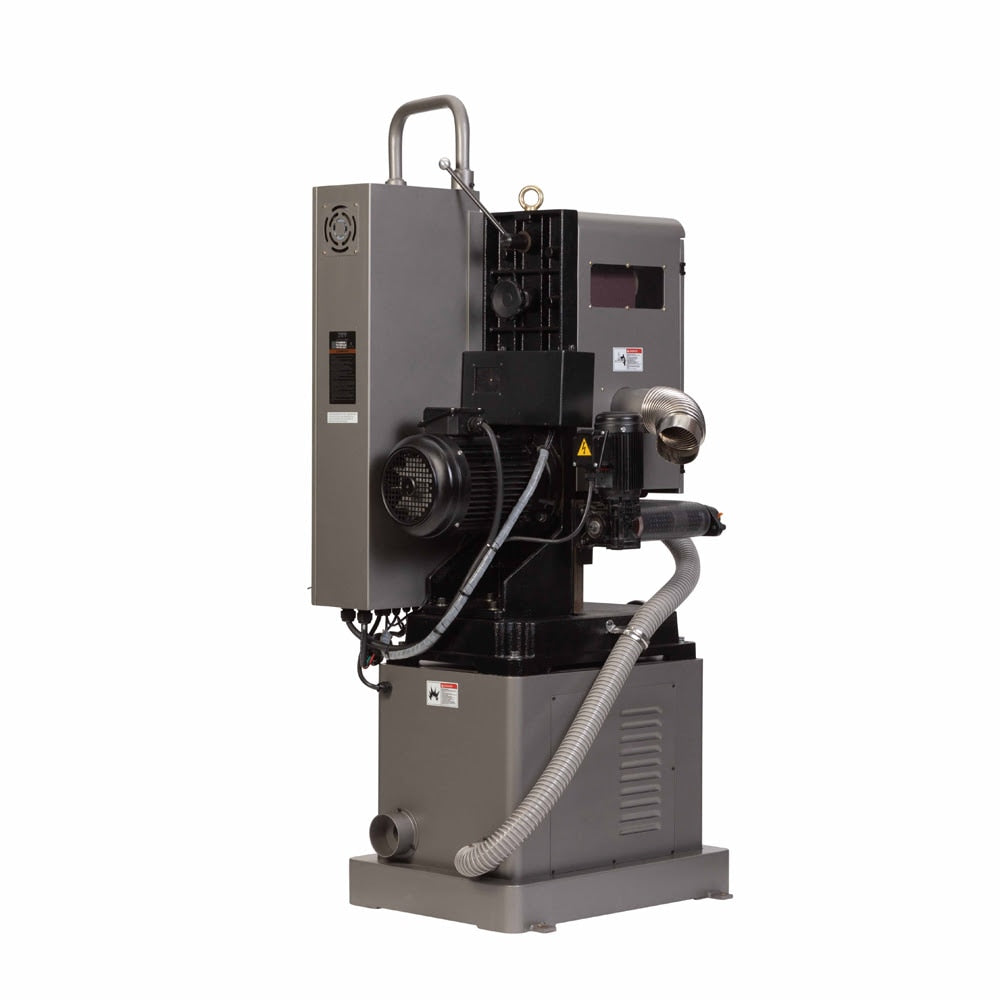

Jet JT1-550 J-948WBSV, 9" Small Piece Variable Speed Wide Belt Sander
Jet JT1-550 Description
The New 9"x 48" Small Piece Wide Belt Sander are ideal for removal of burrs, dross and slag from laser, plasma & water jet cuts. Designed for finishing large numbers of small pieces allowing operators to save time & money. Perfect for prepping material for paint or powder coating. The auto-tracking system keeps the abrasive belt aligned eliminating the need to continuously adjust alignment providing up to 50% time savings and extending belt life. The Variable Speed Conveyor Belt allows ability to match conveyor belt speed to material size/shape including multiple small pieces for optimal finishing. Vacuum suction on the Conveyor Belt holds smaller pieces in place, eliminating material shifts to produce better finishing and reducing belt damage. Improve your efficiency and output with JET's new Small Piece Wide Belt Sander.
Jet JT1-550 Includes
- (1) Belt Sander
Jet JT1-550 Features
- The auto-tracking system keeps the abrasive belt aligned eliminating the need to continuously adjust alignment providing up to 50%-time savings and extending belt life
- Variable Speed abrasive belt allows ability to match abrasive belt speed to material size/shape including multiple small pieces for optimal finishing

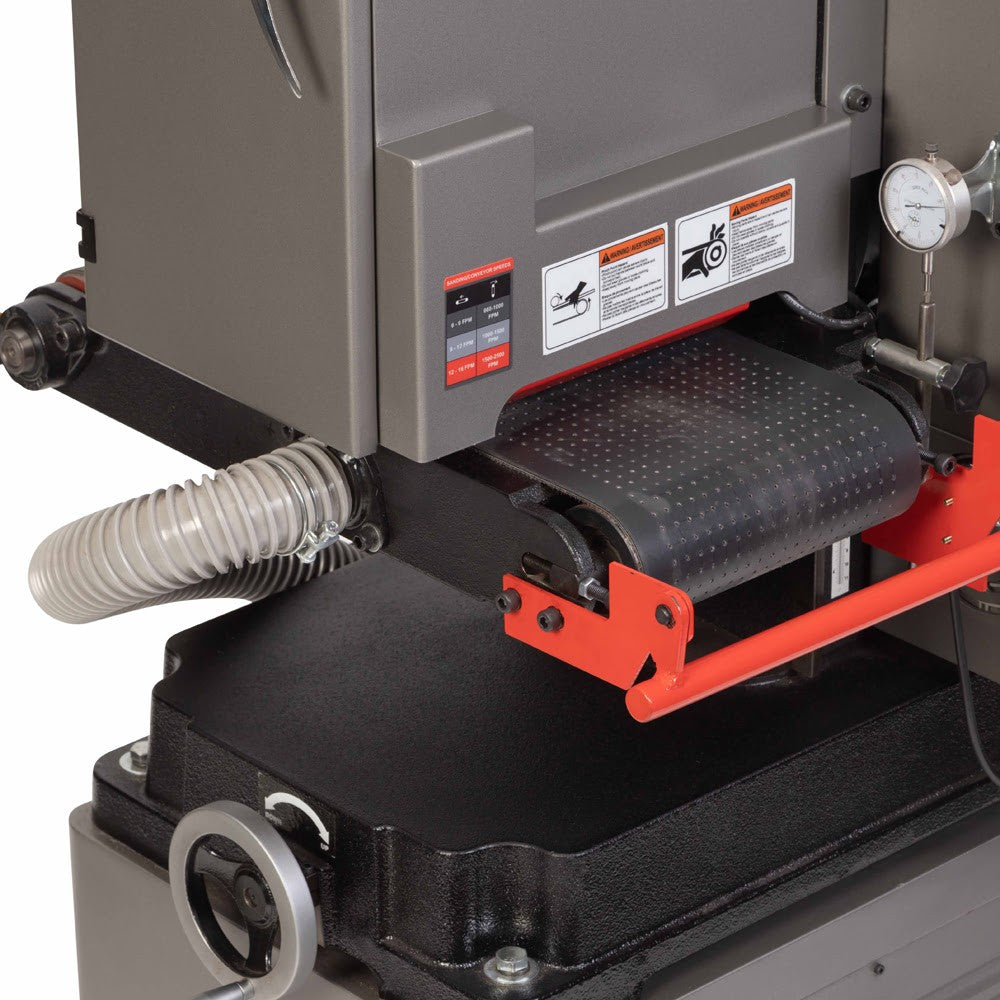

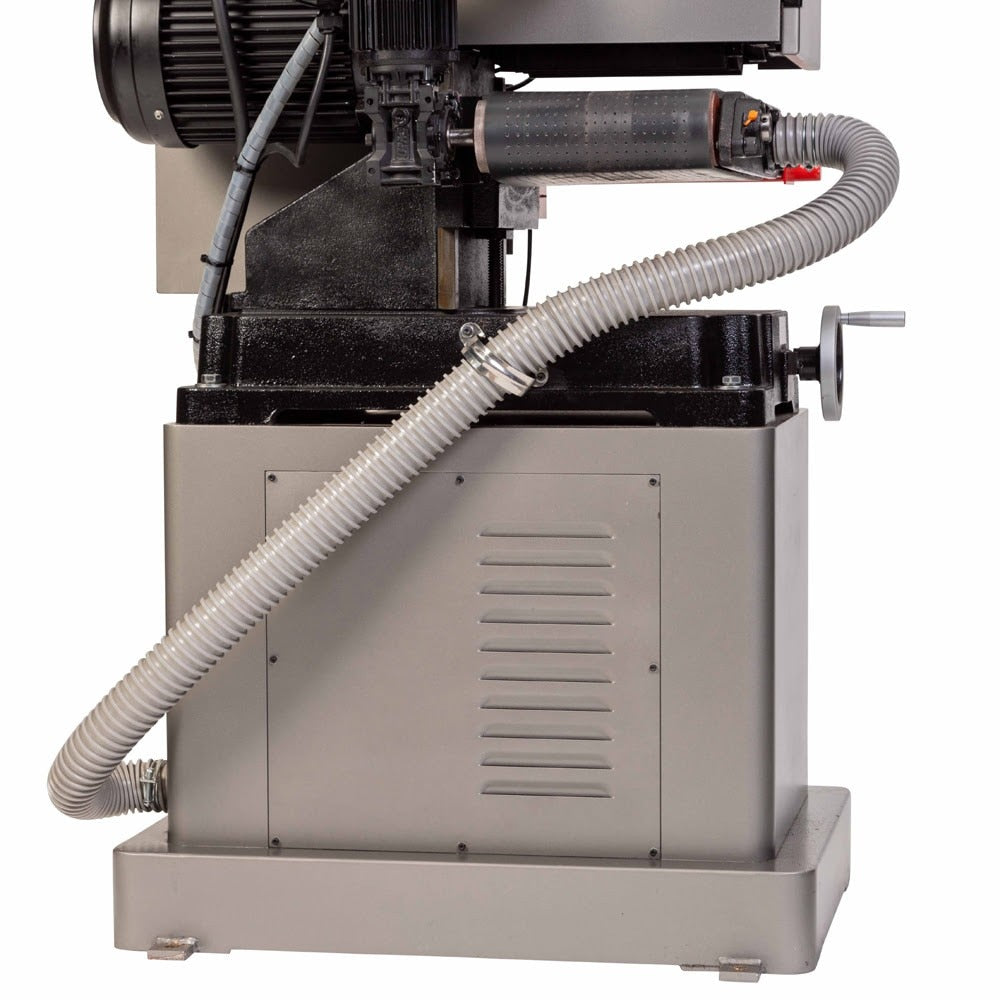

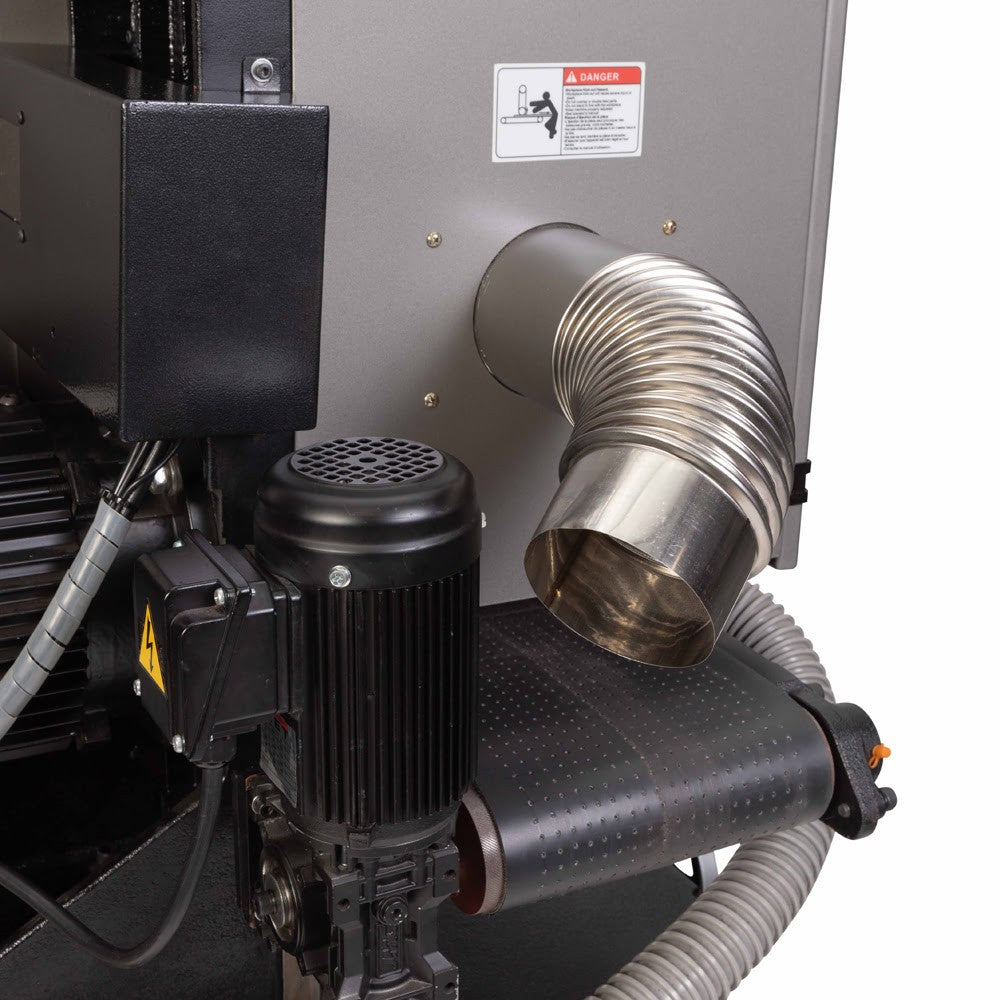

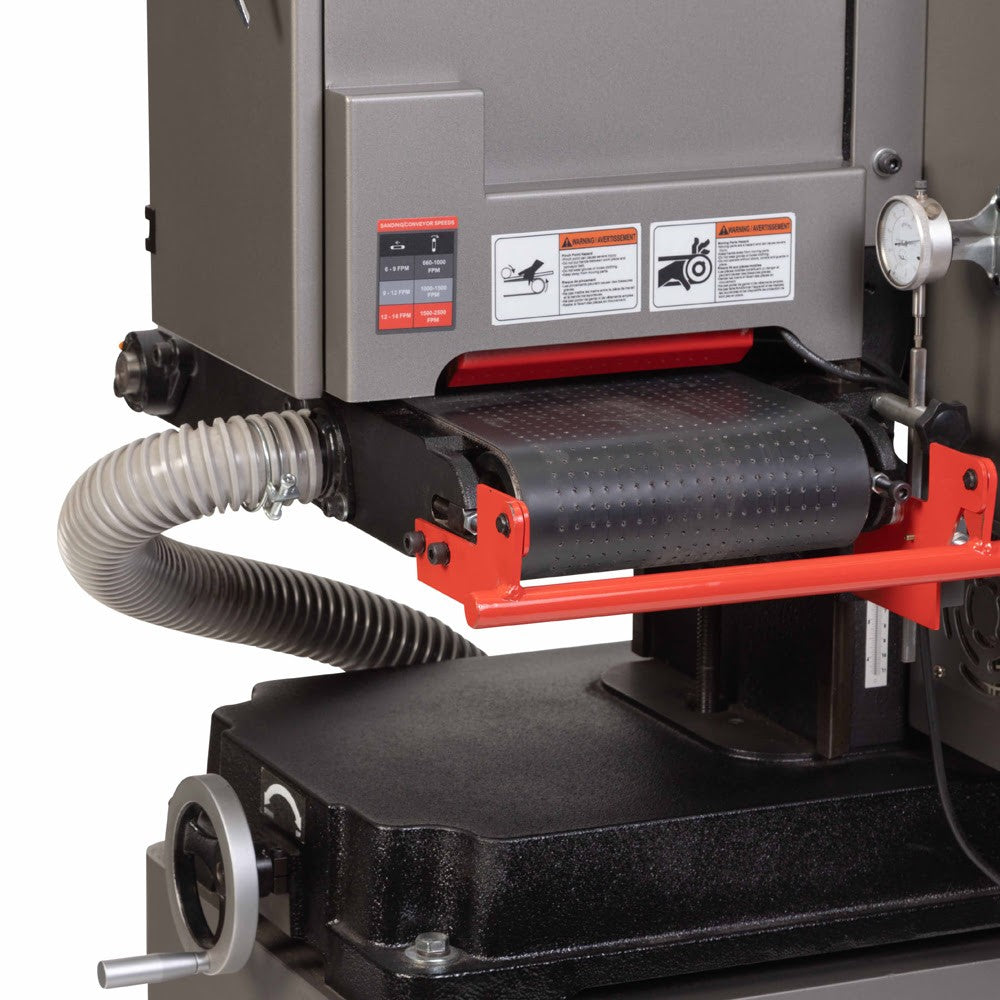

- Vacuum suction on the conveyor belt holds smaller pieces in place, eliminating shifts to produce better finishing and reducing belt damage
- Variable Speed abrasive and conveyor belts provides ability to finish multiple type of material including steel, aluminum, plastic, etc.
- Design allows operator to safely finish multiple pieces quickly without having to hold material producing consistent finished material thickness

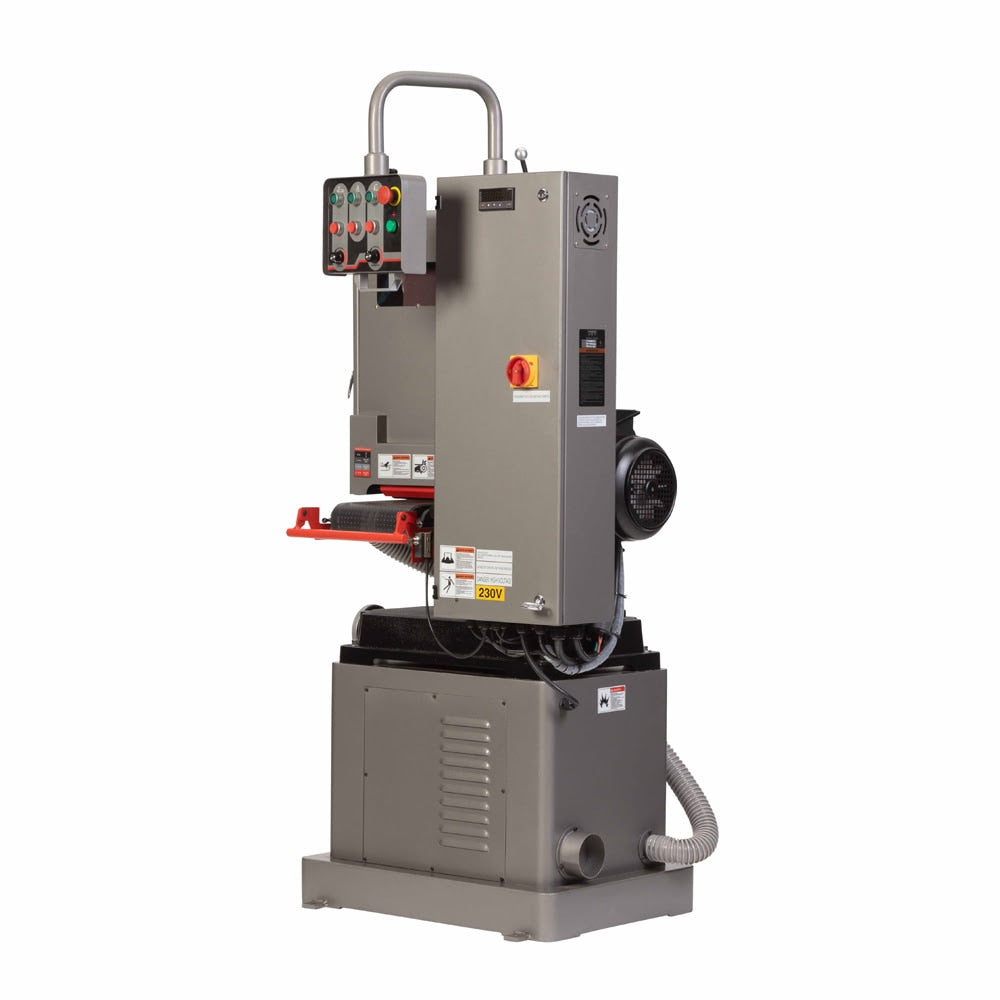

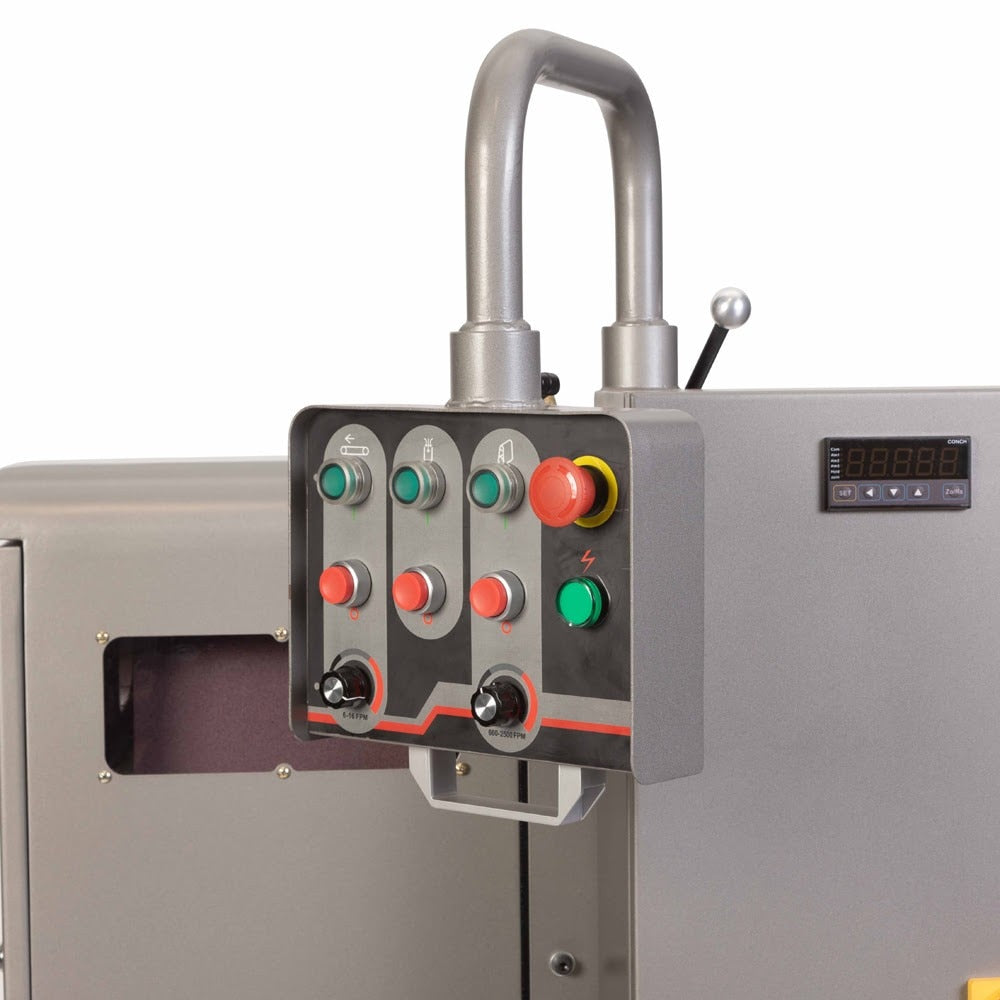

- Swing away control panel makes all controls easily accessible to the operator
- High torque motor produces exceptional power for continuous, long operation
- E-Stop button provides additional operator safety

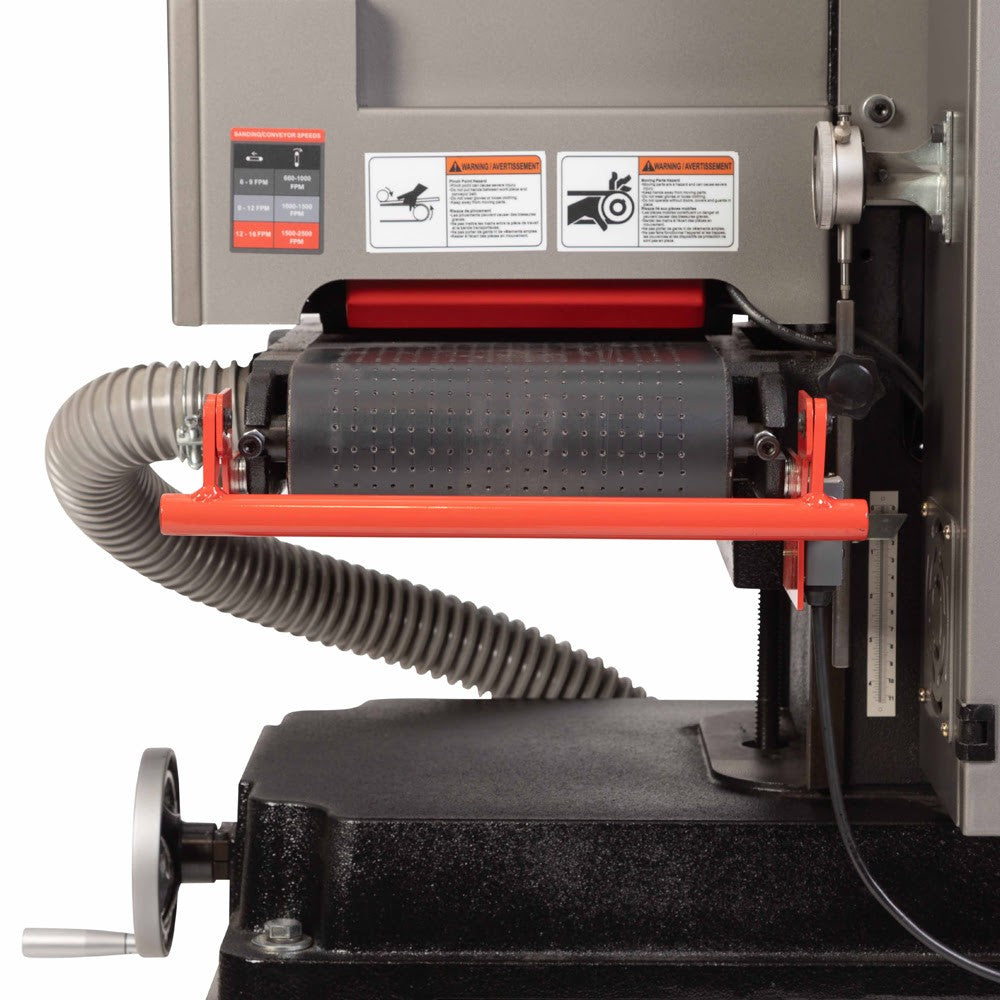

- Quick-stop bar on conveyor belt entry provides additional safety

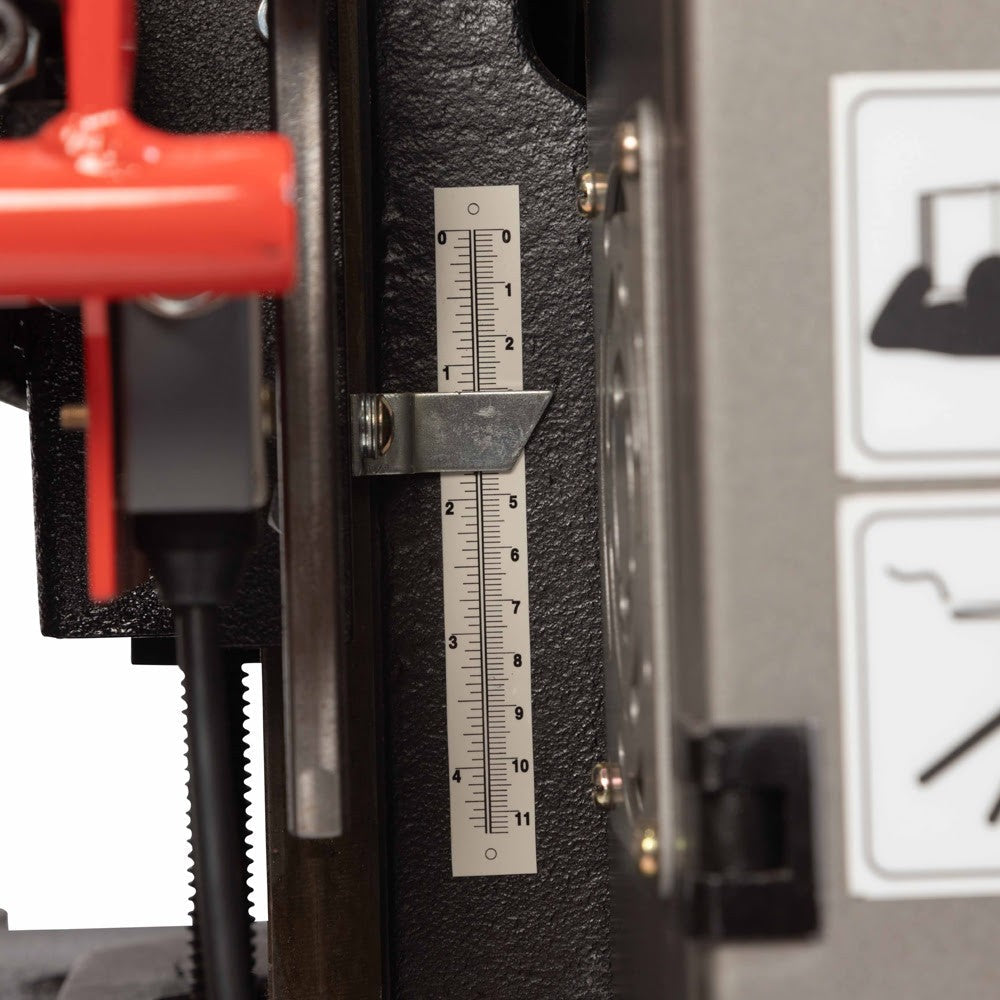

- Material height safety lever limits accidental, improper material entry
Jet JT1-550 Specifications
| Abrasive Belt Speed | Variable |
| Automatic Tracking Abrasive Belt | Yes |
| Conveyor Belt Speed | Variable |
| Vacuum Suction Conveyor Belt | Yes |
| Belt Size (in.) | 9 x 48 |
| Maximum Material Width (in.) | 9 |
| Maximum Material Thickness (in.) | 4 |
| Minimum Material Thickness (in.) | 1/16 |
| Minimum Material Length (in.) | 2 x 2 |
| Abrasive Drum Speed (rpm) | 660 - 2500 |
| Conveyor Drive Speed | 6 - 16 FPM Variable Speed |
| Table Height (in.) | 32.7 - 36.8 |
| Dust Ports (Diameter x Quantity) | 4”, 1 port |
| Electrics | 3Ph 230V/460V |
| Main Motor | 5HP, 3Ph 230V/460V |
| Conveyor Motor | 1/4HP, 3Ph 230V/460V |
| Conveyor Belt Motor with Vacuum | 3HP |
| Net Weight (lbs.) | 704 |
| Gross Weight (lbs.) | 860 |
| Dimensions L x W x H (in.) | 35.1 x 28.9 x 70.5 |
| Country of Origin | Taiwan |
| Warranty | 2 Years Full |
